HQR445C

4:1 redundant L-Band Line Amplifier, 1+1 to 4+1 (variable gain 0 to 40dB)

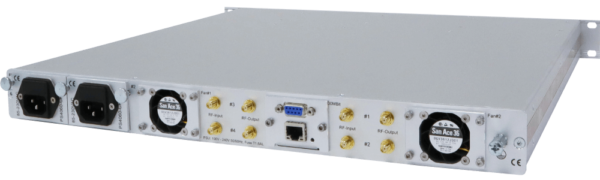

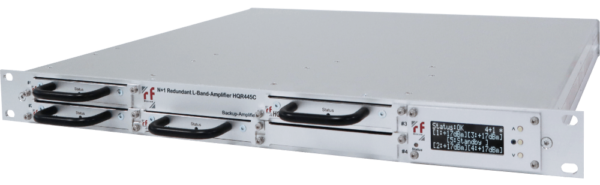

The HQR445C is a compact and flexible 4+1 redundant L-Band line amplifier system built into a 1RU/19” rack mount chassis. The variable gain adjustment ranges from 0 to 40dB (1dB steps) while it also supports slope equalization so to achieve best performance within the RF distribution chain. The HQR445C chassis holds up to five high dynamic HQA45MG amplifier modules (950 – 2150MHz or 850 – 2700MHz) thus allowing an amplifier redundancy operation from 1+1 to max. 4+1 (field expandable, hot-swappable).

HQR145C

1+1 redundant L-Band Line Amplifier (0 to 40dB gain)

The HQR145C is a 1+1 redundant L-Band line amplifier (950 – 2150MHz) with variable gain adjustment (0 to 40dB), slope equalization and various additional functionalities in a compact 1RU/19″ design. This line amplifier is perfectly suited for RF distribution infrastructures wherever accurate RF power, highest stability and availability is necessary. The HQR145C is equipped with two high dynamic 1+1 redundant operating amplifier modules (hot-standby) each providing variable gain so to achieve best performance within the network. The redundancy switching between the two amplifier modules is done nearly interruption free. The unit features variable gain control, slope-equalization, RF power monitoring and 1:1 redundant dual power supply (hot-swappable). Additional features such as AGC mode, switchable LNB-supply and a 10 MHz reference signal port are optionally available. The HQR145C has a front-side LC-Display/keypads for local configuration. Front-side status LED´s indicating amplifier and power supply status. Remote control and configuration can be done via its rear-side Ethernet-Interface (WebGUI, SNMP).

RLA270A

1+1 redundant L-Band Line Amplifier (0 to 26dB gain)

The RLA270A is a 1+1 redundant professional L-Band line amplifier with variable gain, slope-equalization, 10MHz external reference and switchable LNB-supply housed in a 1RU/19″ chassis. This line amplifier is perfectly suited for RF distribution infrastructures in Teleports, Satellite Earth-Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. It is equipped with two high dynamic 1+1 redundant operating amplifier-modules each providing variable gain so to achieve best performance within the network. The unit features adjustable gain, slope equalization, RF power monitoring, 10MHz ref., LNB-supply 1:1 redundant power supply. The RLA270A has a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

HQA Series

Single or Quad L-Band Line Amplifiers

The HQA series represents high dynamic L-Band line amplifiers with variable gain control ranges of 0 to 30dB or 10 to 40dB. It combines the corresponding 1RU/19″ rack mount chassis „HQA101C“ (single amplifier population) and the “HQA104C“ (quad amplifier population) with the corresponding line amplifier modules „HQA2535M“ or „HQA3040M“. The HQA series features variable gain control, slope equalization, RF power monitoring, switchable LNB-supply, a 10MHz external reference input and 1:1 redundant dual power supply. The units have front side LC-Display/keypads for local configuration while remote configuration is possible via its Ethernet-Interface or RS232-Interface (WebGUI, SNMP). It is an excellent tool for compensation of passive RF distribution devices and cable loss and suited for versatile application areas (Teleports, Earth Stations, Broadcast operations…) assuring accurate RF power, highest signal stability and availability.

HQS125CR-32

1+1 redundant L-Band Line Amplifiers with splitter (max. 1:32)

The HQS125CR-32 is a 1+1 redundant operating line amplifier with rear-side integrated passive splitter modules (1:8, 1:16, 1:24 or 1:32) built into a compact 1RU/19″ rack mount chassis. The unit features max. 1:32 L-Band splitting while the two high-dynamic redundant operating amplifier modules allow variable gain control 0 to 25dB as well as slope equalization 0 to 9dB so to reach best RF performance within the network. The redundancy switching between the two amplifier modules is done nearly interruption free. The unit additionally supports slope-equalization, 10MHz external reference, RF power monitoring, threshold alarming, front panel monitoring ports, switchable LNB-supply (option) as well as 1:1 redundant power supply. The HQS125CR-32 has a front side LC-Display/keypads for user-friendly local configuration while front panel status LED´s indicating amplifier and power supply status. Remote configuration & monitoring can be done via its rear side Ethernet-Interface (WebGUI, SNMP). This high quality unit provides various advantageous functionalities, superior RF performance and excellent signal quality and is an ideal fit for any RF distribution infrastructure where accurate RF power, highest signal stability and availability is necessary.

HQC125CR-32

1+1 redundant L-Band Line Amplifiers with combiners (max. 32:1)

The HQC125CR-32 is a 1+1 redundant operating line amplifier with rear-side slots for integration of max. 4 passive combiner modules (capacity 8:1 to max. 32:1), built into a compact 1RU/19″ rack mount chassis. The unit features 8:1 to max. 32:1 L-Band combining while the two high-dynamic redundant operating amplifier modules allow variable gain control from 0 to 25dB as well as slope equalization 0 to 7dB so to reach best RF signal performance within the network. The redundancy switching between the two amplifier modules is done nearly interruption free within a switchover time of less than 5ms. Besides the variable gain control (MGC/AGC) and max. 1:32 splitting the unit additionally supports slope-equalization, RF power monitoring, threshold alarming, 2 front panel monitoring ports as well as 1:1 redundant dual power supply.

The HQC125CR-32 has a front panel LC-Display/keypads for user-friendly local configuration while front panel status LED´s indicating amplifier and power supply status. Remote configuration & monitoring can be done via its rear side Ethernet-Interface (WebGUI, SNMP). This high quality unit comes with lots of beneficial functionalities, superior RF performance and excellent signal quality. It is an ideal fit for any RF distribution infrastructure where accurate RF power as well as highest signal stability and availability is necessary such as Teleports, Satellite Earth-Stations, Broadcast facilities and CATV/IPTV headend platforms.

HQS Series

Line-Amplifiers Splitters & Combiners

The HQS series represents variable gain L-Band amplifier units with integrated 1:8 or 1:16 splitters. The variable gain line amplifier modules support gain-control ranges of max. 0 to 25dB or 0 to 30dB. The 19″/1RU rack mount chassis „HQS108C“ (1:8 splitter chassis) and „HQS116C“ (1:16 splitter chassis) each with one amplifier slot allow insertion of the corresponding amplifier module HQA2535M“ or „HQA3040M“. The „HQA2535M“ amplifier allows variable gain-control of max. -10 to 15dB @ standard gain mode and max. 0 to 25dB @ high gain mode while the „HQA3040M“ amplifier provides variable gain-control of max. -10 to 20dB @ standard gain mode and max. 0 to 30dB @ high gain mode so to achieve best signal performance within the network. The HQS series features variable gain-control (MGC/AGC), slope equalization, RF power monitoring, switchable LNB-supply, a 10MHz external reference signal input and 1:1 redundant dual power supply (hot-swappable). An integrated RF power detector measures the RF output power with 70dB dynamic range. The units have a front-side LC-Display/keypads for user-friendly local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration & monitoring can be done via its rear-side Ethernet-Interface (WebGUI, SNMP). This high quality HQS splitters together with the inserted line amplifier module provide various advantageous functionalities, superior RF performance and excellent signal quality. The HQS units are excellent for compensation of passive RF distribution devices and cable loss and suited for versatile application areas (Teleports, Earth Stations, Broadcast operations…) assuring accurate RF power, highest signal stability and availability.

RLS2708A
RLS2716A

1+1 redundant L-Band Line Amplifiers with internal 1:8 and 1:16 Splitter

RF-Design´s RLS2708A and RLS2716A are 1+1 redundant operating line amplifier units with rear-side integrated 1:8 or 1:16 L-Band splitters built into a 1RU/19″ chassis. The units features 1:8 or 1:16 L-Band splitting while the two redundant operating amplifiers allow variable gain adjustment so to reach best RF performance within the network. Besides the variable gain adjustment and 1:8 or 1:16 splitting the units also feature slope equalization, 10MHz external reference, RF power monitoring, switchable LNB-supply as well as 1:1 redundant dual power supply. The RLS2708A and RLS2716A units represent flexible and compact RF distribution & amplification systems perfectly suited for use in Teleports, Satellite Earth Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The units have a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

RLC2708A
RLC2716A

1+1 redundant L-Band Line Amplifiers with internal 8:1 and 16:1 Combiner

RF-Design´s RLC2708A and RLC2716A are 1+1 redundant operating line amplifier units with rear-side integrated 8:1 or 16:1 L-Band combiners built into a 1RU/19″ chassis. The units features 8:1 or 16:1 L-Band combining while the two redundant operating amplifiers allow variable gain-adjustment so to reach best RF performance within the network. Besides the variable gain adjustment and 8:1 or 16:1 combining the units also features slope equalization, 10MHz external reference, RF power monitoring as well as 1:1 redundant dual power supply. The RLC2708A and RLC2716A units represent flexible and compact RF distribution & amplification systems perfectly suited for use in Teleports, Satellite Earth Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The units have a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

HQR435C

N+1 redundant L-Band Line Amplifier, 1+1 to 4+1 (variable gain 0 to 34dB)

The HQR435C is a compact, flexible and modular N+1 redundant L-Band line amplifier system built into a 1RU/19” rack mount chassis. The variable gain adjustment ranges from 0 to 34dB (1dB steps) while it also supports slope equalization so to achieve best performance within the RF distribution chain.

.he HQR435C chassis holds up to five high dynamic HQA30MG amplifier modules (950 – 2150MHz or 850 – 2700MHz) thus allowing an amplifier redundancy operation from 1+1 to max. 4+1 (field expandable, hot-swappable)

HQR245C-FT

1+1 redundant / 2 single high precision L-Band Amplifier (gain 0 to 40dB, Step 0.1dB)

The HQR245C-FT represents a 1+1 redundant RF line amplifier in a compact 1RU/19″ rack mount operating at L-Band (950 – 2150MHz) frequency useable as 1+1 or dual single operational amplifier.
It comes with variable gain control ranging from 0 to 40dB in 0,1dB step along with slope equalization (module HQA45MGFT) and various additional functionalities. For highest operational performance the HQR245C-FT is available with Amplifier Module HQA45MGFTNS (no slope) for highest return loss > 18dB.
